OwnerSvein Medhus
LocationOslo, Viken Norway map
Web/EmailWebPage email image

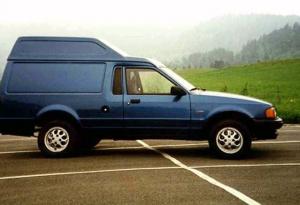

Vehicle1986 Ford Escort Express
(European Escort)
MotorAdvanced DC FB1-4001A Series Wound DC
9"
Drivetrain5 speed manual with Mobil ATF SHC synthetic oil
ControllerCurtis 1231C
Batteries12 Optima 750 DS, 12.00 Volt, Lead-Acid, AGM
Yellow Top
System Voltage144 Volts
Charger
a charger for each battery. 6 Amp three phase.
Heater1500 Watt solid-state heater running off the 144 Volts
DC/DC ConverterVicor VI-L52-EU
14.5 Volt / 13.3 Amp
Instrumentationa) Ammeter
b)voltmeter
c.)aux. (12 volt) voltmeter
Top Speed72 MPH (115 KPH)
Seating Capacity2 adults
Curb Weight2,490 Pounds (1,131 Kilograms)
Additional FeaturesOne individual charger for each battery. 6 amps constant current until 14.7 volt. 14.7 volt until current drops under 0.7 amps. Finally, 13.7 volt float until unplugging charger. Temperature compensated. Based on Unitrode UC3906 part
Visit my web site for more info on Optima batteries.
