drivetrainDrivetrainDrivetrain2
OwnerRandy Scott
LocationHouston, Texas US map
Email email image

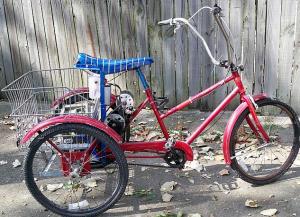

VehicleHuffy granny trike
first gen three wheel bike dates back to the 1970's
MotorUnite Motor MY1020 Permanent Magnet DC
24v 500w 27a
Drivetrain3-speed in-hub Shimano with real differential in rear axle - made jackshaft from Schwinn rear axle
ControllerControl Techniques CS1103
scavenged off of an Amigo motorized shopping cart that Billgave me
Batteries4, 12.00 Volt, Lead-Acid, AGM
7AHr 2parallel x 2series = 14AHr
System Voltage24 Volts
Charger
TNCScooters #101140
HeaterHeater? This is Houston - we don' need no stinkin' heaters
Top Speeddon't care about speed, just moving fat guy around - satisfied if it does a legal 20 mph
Rangestill under construction, but only need 1 mile to liquor store, 1-1/4 miles to favorite cafe
Watt Hours/Mileunknown
Seating Capacity1 really big one
Curb Weight0
unknown - crippled guy could lift it into back of pickup before conversion. Making the batt box removable for this reason.
Tires24" - 3 of 'em
Conversion TimeXmas - 5 days off work
New Years - 4 day weekend
Sept- 9 months interrupted
Conversion Cost$245 so far - w shipping
Additional Featuresfolding grocery basket, banana seat, owner-built sissy bar, ape-hangers, booze holder
jackshaft was the rear axle from a Schwinn/Izip/Currie. new sprocket welded to old hub housing. total gear reduction should be 7:1. thinking about disc brake on differential housing
01-13-08 batt box is finished. Old alum signs beat into shape, insulated w corrugated plastic - still waiting for dorks @ pharmacy to process my last photos
02-26-08 dorks @ pharmacy crashed last roll of film - no new photos yet - building rack for batt box
06-15-08 crimping connectors on cables - need to experiment with throttle to figure out which wires go to controller.
08-08 First test drive resulted in trouble with controller - vendor not helping much. Did get more pics tho'. Result of Hurricane Ike the whole house is a mess & I can't do anything right now.
04-09 Bill gave me an Amigo shopping cart that he pulled out of a dumpster and I scavenged the controller from it. It works fine but now I have a problem with the chain jumping off the sprocket.
