OutrunnerMotor Plate
OwnerJames Beyer
Owner's Other EVs500 Watt Electric Scooter
250 watt Electric Scooter
500 Watt bike
LocationLondon, England United Kingdom map
Email email image
Vehicle2008

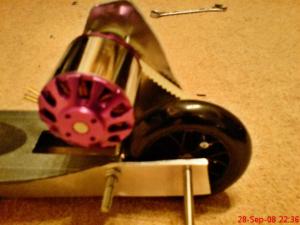

Motor HXT 63-74 200kv Brushless DC
Voltage range 10-37v
200Kv
Weight 790g
10mm shaft
power 2880watts
100 Amp ESC
Controller Turnigy Sentilon 100 Amp HV
Bulletproof Speed Controller
High voltage BESC
BEC OPTO ver 3.1
2-12 Li-poly / 5-36NC

E Sky servo adjuster to rc interface pwm controller
Batteries4 Venom 3600Nimh, 7.20 Volt, Nickel-Metal Hydride
System Voltage29 Volts
Charger Pro-Peak Varipulse
2x AC/DC Delta Peak Fast Charger
Charge Rate 200Mah to 3000Mah 4.8v-9.6v
HeaterMother nature
InstrumentationWhatt's up
100A 60v 6500watt lcd meter
Top Speed25 MPH (40 KPH)
This is an approximation calculated by the gear ratio of 2.75:1 and the voltage and rpm of the motor that turns the wheel. The circumference of the wheel is 44 cm.
Accelerationexpecting 0 to 25 mph in about 3 seconds, but you would just get thrown off. So bout 6-8 seconds is reasonable
Range6 Miles ( 9 Kilometers)
This is very dependent on the riders weight and weather conditions
Watt Hours/Mile207 Wh/Mile
Seating Capacity1 and maybe a second but they will have to be small
Curb Weight18 Pounds (8 Kilograms)
I have weighed all of the components together and got 18lbs but this will probably change!!!
Tires265mm extra large solid official Micro scooter wheels with Abec bearings
Conversion Time50 hours drawing out diagrams on Solidworks 2008 and assembly time.
Conversion CostQuite a bit
