OwnerKorbinian
Owner's Other EVsSaxi
1973 Fiat 500
LocationChiemsee, Bavaria Germany map
Email email image

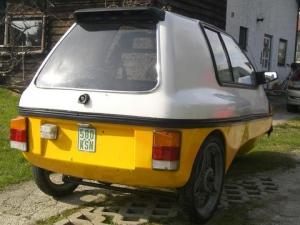

Vehicle1992 CityCom Basic
Nr. 36**
MotorThrige-Titan 2,5kW
Riemenantrieb auf Blechscheibe
ControllerCurtis
120A full acceleration
Batteries30 Saft 50Ah , 1.00 Volt, Nickel-Cadmium, Flooded
selected used single-cells from aircraft.

WebPage target="_blank">WebPage
System Voltage36 Volts
Charger Fronius 3020 (36V/20A)
Heateraccu: 3x heating foil 35W
Top Speed45km/h
Range33km
Seating Capacity1 + child
TiresContinental 80/70-16 40E
Battery-log:

km ??: no count. much.
1. used old CTM 100, range 20-25km, terrible.

km 6000:
2. EXIDE dryfit GF12105V tractionblock,
3x 12V, 105AhC5 á 40kg, Bleigel
- new 2009-07 (stored in cellar, regularly loaded)
- built in 2010-04-24, 0km, range 46km
- 1,5kWh/20km (20°C accutemp, 2010-04) = 7,5kWh/100km
- built out 2011-04-25, 2950km, range >40km

km 8911:
SAFT NiCd-single-cells 50Ah, 1,2V. 30 cells á 2kg
- used from aircraft Boeing 707, selected and formed
- built in 2011-04-26, 0km, range 33km, 45Ah
