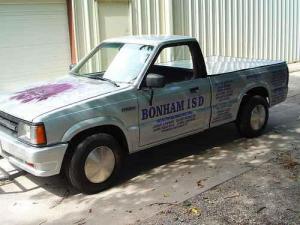

EV with Sponsor DecalsStudents Removing ICE ComponentsI.C.E Junk RemovedThe DC Motor for the E-Warrior80% Completed under the Hood15ea NiCad Battery Traction PackEV Monitoring ConsoleI.C.E. items removed from the B2200 pick
OwnerBonham ISD
LocationBonham, Texas United States map
Vehicle1989 Mazda B2200
Silver, 2 Door Pickup, with customized airbrush artwork and sponsor decals.
MotorPrestolite Series Wound DC
7" single shaft, very heavy for it's size.
DrivetrainManual Transmission
ControllerCurtis 1231
Batteries15 Saft STM5-180, 6.00 Volt, Nickel-Cadmium, Flooded
Donated to us from "Georgia Tech", visit: www.neetrac.gatech.edu
System Voltage90 Volts
ChargerQuick Charge Onboard EV Model
Nice compact, yet heavyduty charger from: www.quickcharge.com WebPage
DC/DC Converter
12 volt deep cycle battery
InstrumentationAnalog Amp Meter, digital voltmeters for the traction pack, and the aux systems battery.
Top Speed45 MPH (72 KPH)
This vehicle has a planned life/use. It'll never see over 45 mph as it'll be used around 5 school campuses for the
Technology Department's daily use.
Range30 Miles (48 Kilometers)
Should obtain 30 miles at city street speeds easily, all we need is 20mile max in a day's work routine.
Seating Capacity2 adults
Many thanks to all the businesses & individuals who have donated parts/money/labor towards this project.

More detailed photos of the conversion process can be seen at: www.shrunkin.com/ev WebPage

Also, please visit our friends at: www.nteaa.org WebPage

The, North Texas Electric Auto Association
