Right SideUnder HoodBed RaisedMain Battery Box with See Through CoverCabInstrument ClusterRear Battery box
OwnerJim Bartlett
LocationCary, North Carolina United States map
Email email image

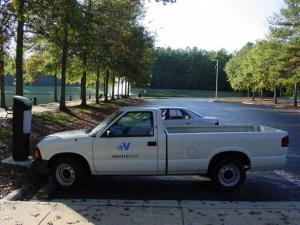

Vehicle1994 Chevrolet S-10
Factory Built S-10 pickup. 312V DC system. Never a gasoline vehicle.
MotorHughes 3-Phase AC
50KW Peak. 15KW Continuous
Drivetrain50KW, 3 Phase AC Induction motor. Manual transmission locked in 2nd gear.
ControllerHughes Dolphin
Batteries26 Universal Power XSA12800, 12.00 Volt, Lead-Acid, AGM
80AH, As of 5/25/09 I have a mixed pack of 16 used XSA12800's (4500 miles on them) and 10 new UB12750 (75AH).
System Voltage312 Volts
ChargerHughes Dolphin
Built into Controller
HeaterFluid heater for original heater core
DC/DC Converter
Built into Controller
InstrumentationFuel Gauge used as SOC meter
Top Speed70 MPH (112 KPH)
Range35 Miles (56 Kilometers)
Range was 50 miles when batteries were new. Range is 30 to 35 miles now if driven easily.
EV Miles
Start:12,100 Miles (19,468 Kilometers)
Current:17,250 Miles (27,755 Kilometers)
Total:5,150 Miles (8,286 Kilometers)
Seating Capacity2 adults
Curb Weight4,400 Pounds (1,999 Kilograms)
Tires205/75R15 LRR
Additional FeaturesPowerPulse onboard battery desulfators.
6 x PP48L plus one PP24L to cover the 26 batteries
SOLD - On it's way to Germany.
