Kewet 2Kewet 2Kewet 2Kewet 2Kewet 2Kewet 2Kewet 2
OwnerClaus
Owner's Other EVs2003 TWIKE
2009 Aixam Mega e-City Elektro
LocationMunich, Bavaria Germany map
WebWebPage

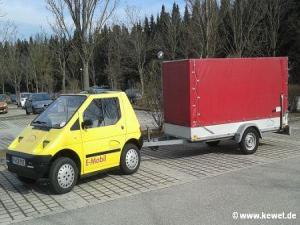

Vehicle1992 Kewet Kewet 2
(SN273)
MotorThrige-Titan Series Wound DC
7.5 Kilowatt
Drivetrain4. Gear reduction / differential
ControllerCurtis PWM
Curtis 1205-201, modified, range now from 48V to 80V
Batteries16 Thunder Sky Winston WB-LYP200AHA LiFePO4 , 3.30 Volt, Lithium Iron Phosphate
8x LiFePO4 200Ah blocks in front, 2x4 blocks under seats
System Voltage52 Volts
Charger Piktronik & More
Piktronik 48-66V 18A full programmable by PC and 2x 30A Powercharger (if must be faster, max. Power 78A)
Heaterpropane gas heating 2kw
DC/DC Converter
original Kewet, Danish type, 12V, 25A
InstrumentationSpeedometer, Odometer, Digit. Battery Volts
Digit. Battery Amps, EMUS BMS System with Bluetooth, digital Instruments,
Top Speed50 MPH (80 KPH)
Range40 Miles (64 Kilometers)
40-50 miles full speed
60-80 miles slow speed
Watt Hours/Mile12-15 kWh/100km
EV Miles
Current:13,500 Miles (21,721 Kilometers)
Seating Capacity2 adults
Curb Weight1,631 Pounds (741 Kilograms)
high weight, but very robust like a "tank"
TiresAlu-Borbet,5,5J13R,LK98L4,ET30,FR55330, Tires 175-60R13 77T
Conversion TimeProduction EV (from Denmark), upgraded
Conversion Costcomplete conversion cost over 10000 US$
The biggest Kewet homepage worldwide www.KEWET.de WebPage
