OwnerCarlos Barria Casanova
LocationPuerto Montt, Los Lagos Chile map
Email email image

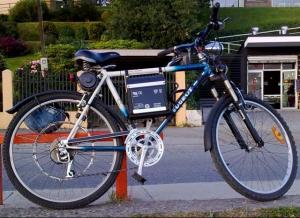

Vehicle1990 Peugeot Montreal Express
MotorCurrie XYD-13 24V 36A 600watts Permanent Magnet DC
Belt drive
ControllerCurrie 40A 24V
Batteries2x 18A , Sunnyway SW12180, 12.00 Volt, Lead-Acid, AGM
System Voltage24 Volts
Charger
Homemade 14.4+14.4V Reg. voltage and limited current 2A
InstrumentationBike odometer
Top Speed22 MPH (35 KPH)
Acceleration0 to 20mph in 10 sec.
Range10 Miles (16 Kilometers)
10 miles at 22 mph
15 miles at 13 mph
EV Miles
Current:1,118 Miles (1,798 Kilometers)

    As of 3/7/2010
Seating Capacity1 adult
Curb Weight72 Pounds (32 Kilograms)
Tires26"
Conversion Time7 days
Conversion Cost$350
Additional Featureslights permanently on, white multiled on the front in an old lamp and red in the queue.
in the darkness, I use 24v 70w halogen lamp in a fog lamp
my city is mountainous so needed some help to climb mountains.
Without pedaling climbs mountains 10 ° to 7 mph, 6º to 19 mph.These rates increase with pedaling.
