Template for kitEnginer KitEnginer BatteryGas Mileage chart
OwnerDavid Hrivnak
Owner's Other EV2004 Chevrolet Avalanche
LocationKingsport, Tennessee United States map
Web/EmailWebPage email image

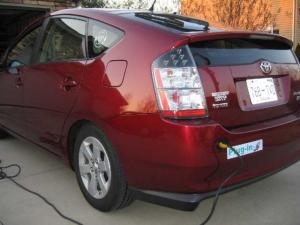

Vehicle2005 Toyota Prius
Converted with Enginer kit to improve mileage and add EV mode. We have seen a 27% improvement in our situation.
DrivetrainAdded 4 KWH of battery through the Enginer system
Batteries0.00 Volt,
The system has a DC to DC converter that boosts the voltage to 300V to keep the Prius battery topped off.
System Voltage48 Volts
Heaterstandard Prius
InstrumentationEnginer status LED's and a BMS screen
Top Speed95 MPH (152 KPH)
AccelerationLike a stock Prius I guess 9 sec 0-60
Range500 Miles (804 Kilometers)
500 miles with the gasoline engine but about 60 miles with the battery assist.
EV Miles
Start:80 Miles (128 Kilometers)
Current:81 Miles (130 Kilometers)
Total:1 Miles (1 Kilometers)

    As of 3/25/2011
Seating Capacity5 adults
Curb Weight2,700 Pounds (1,227 Kilograms)
The system adds about 175 lbs.
TiresStock
Conversion Time1 long day, a short day if I do it again.
Conversion Cost$2500
Additional FeaturesThe system is well thought out and if I understood how the high voltage plug worked on the Prius, it would have taken about half the time.
You really lose access to the spare tire so I added a can of fix-a-flat. Just like a Tesla :)
