|Location||Lubbock, Texas US map|

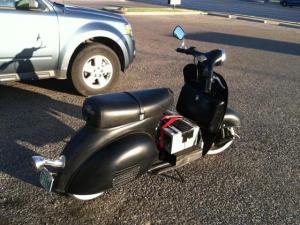

|Vehicle||1961 Piaggio Vespa VNB |
Originally a 125cc 3-speed scooter with a 6V stator and 4.5 peak horsepower.
|Motor||Kelly 48V 3KW Hub motor Brushless DC|
|Drivetrain||Kelly 48V Hub Motor|
|Controller||Kelly KEB 48400X|
48V 400A No regen
|Batteries||4 Headway 48V 30Ah Headway pack, 48.00 Volt, Lithium Iron Phosphate|
The battery pack is a work of art - Thanks, Jim Delgado at Headway Headquarters! The box is less of a work of art. I mounted the pack in a 20" toolbox to keep the arrangement somewhat modular and removeable.
|System Voltage||48 Volts|
|Charger|| 48V 110VAC 15amp|
Supplied by Headway Headquarters with the pack.
|DC/DC Converter|| Green Galaxy 36-48V|
This thing rocks! Tiny and only $25
|Instrumentation||iPhone speedometer app|
I need to replace the speedo cable next.
|Top Speed||28 MPH (45 KPH)|
Cruises easily at 28mph.
|Acceleration||Very good. Quicker than a stock ICE Vespa 150 to 25mph|
|Range||18 Miles (28 Kilometers)|
(Longest trip so far)
|Curb Weight||200 Pounds (90 Kilograms)|
|Tires||3x10" Sava Kran whitewalls.|
|Conversion Time||Not counting the restoration - six months or so working a few hours per week.|
|Conversion Cost||A little less than $4000 so far (including purchase price and restoration) Lots of good purchases on scoot.net and at Scooter Mercato.|
|Additional Features||Model A taillight, slightly modified swingarm from a Razor MX400, mountain bike rear shock, Kelly rear disk brake, Genuine Stella seat|
IT FINALLY RUNS!!!!
After fighting for some time with properly wiring it up, it finally runs. Acceleration is good. It is amazingly quiet and well balanced. I can't wait to get the small details ironed out.
Conversion in Progress - I have had a great deal of fun trying new ways to mount the motor and batteries. I commute to work every day on an electric bicycle, and that has taught me the value of having a removable battery pack (or two) The bike started out rusty and rough. Special thanks to my ever-patient wife, Toni, to John Earl for encouragement, to Jereme Ragsdale for giving me a place to sandblast and paint it, and to the Man Upstairs (for everything).
After several struggles with the original controller, I replaced it with a new one from Kelly. The bike accelerates and handles beautifully and is much better balanced than any vintage Vespa I have ridden. Also, the rear disk brake is a vast improvement over the stock brakes.
Now that the bike is basically finished, I am dreaming of a larger controller and a lithium battery pack to create more useable range. I would really like to cruise at 35MPH and have a range of at least 20 miles. My round trip commute to work is 12 miles.
Two people who rode it this weekend asked what it would take to build them one.
It is now legal and completely ride-able. High beam, low beam, brake light and horn all work. I don't think it will ever truly be finished, but it feels good to have it to this stage.
Commuted to work on it three days this week. Absolutely a blast to ride! The old scooter has garnered enough interest in those three days that two people have asked me to help them find a Vespa and two more people have asked if I would help them build an EV.
The other big news for the week is that I ordered a 48V 30Ah battery pack from Jim at Headway Headquarters. Great guy to talk to. [He has the other (much nicer) black Vespa on this site: WebPage Can't wait for the pack to arrive so the bike can lose weight and gain range.
The next big step is to replace the controller with a Kelly 48V 4KW KEB controller.
The 4KW controller is now on its way. Still working on small details. Added a rear rack this weekend and took the bike grocery shopping.
The Headway pack is here and will soon be in the bike. Woohoo!
Not a whole lot to report. Lots of lessons learned. The biggest one is that voltage equals speed when it comes to EVs, especially when you use a hub motor. Going from lead to lithium shaved a great deal of weight and had a big impact on range, but there was no increase in top speed at all. Going from a 200amp to a 400amp controller drastically increased the acceleration but had no impact on top speed. At 48V it is a 28mph machine.
