OwnerBrian James
Owner's Other EVs1975 Marden Espace1
club car UTV
1974 Sebring Vanguard Citicar
LocationWallenstein, Ontario Canada map
Email email image
Vehicle1996 Club Car DS
tow cart

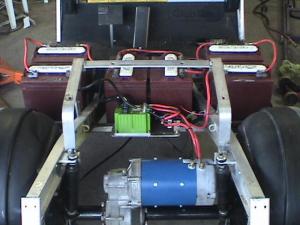

MotorD&D Motor Systems, Inc. ES-9F-50R Separately Excited DC
16 hp peak (claimed)
Drivetrainstock Kawasaki axle
ControllerNavitas TSX 500
Navitas by ASI TSX line of fully-
programmable controllers for separately excited motors have half-H armature control and independent full-H field
control enabling contactorless
reversing and motor performance
optimization. With current and thermal
limiting of armature and field
sections, current limited contactor
I/O, automotive quality AMPSEAL™
connectors, and rugged highly ingress
resistant ABS case, the TSX is fully
protected. TSX supports Hall Effect,
resistive, and inductive throttle
types. Some TSX models have a full CAN
interface and can be slaved with to
another TSX for dual-motor control.
TSX controllers are fully programmable
with the intuitive PC Probit II user
interface allowing control of virtually
all settings including current limits,
maximum speeds in both forward and
reverse, and battery over-discharge
protection.
Batteries6 Trojan T875, 48.00 Volt, Lead-Acid, Flooded
System Voltage48 Volts
ChargerDPI 48017
Heaternone
DC/DC Converter china
10 amp
InstrumentationCurtis digital batt meter
Top Speed23 MPH (37 KPH)
controller has field weakening (overdrive)
which enables motor to overspeed
Accelerationvery hard (0 to 15 in about 20 feet)
Range30 Miles (48 Kilometers)
not used on road but tested once on a 30 mile run at full throttle and used 50% battery power
Seating Capacity2 persons and 1 dog
Curb Weight950 Pounds (431 Kilograms)
was at a small town tractor pull and weighed in at 1100 lbs with me on it
(pulled 275 feet of 300 )
Tires22x11.50x10 duro 6 ply
Conversion Time2 days
Conversion Cost$5000
Additional FeaturesLED head lights,custom limited slip differential
cart has been very useful for moving boats up to 24 feet around the parking lot for the last 5 years and will go most places a four wheeler can.regen is set to 300 amps so brakes are pretty much for parking only.I have built 6 more for friends and neighbours and they just love them.
