| Owner | Ben Graves |
|---|---|
| Owner's Other EVs | 1966 Volkswagen Microbus 1983 Grumman Kurbwatt 2002 Human Electric Hybrid |
| Location | Southeast, Georgia United States map |
| Web/Email | WebPage |
| Vehicle | 1981 Honda 500 Human Electric Hybrid |
| Motor | Advanced DC L91-4003 6.7 Series Wound DC |
| Drivetrain | Direct Drive 6:1 ratio |
| Controller | Evnetics Soliton Jr 600 Amp |
| Batteries | 32 GBS 100ah, 3.20 Volt, Lithium Iron Phosphate |
| System Voltage | 102 Volts |
| Charger | 10 amp |
| Instrumentation | BMS Display and GPS |
| Top Speed | 77 MPH (123 KPH) |
| Range | 60 Miles (96 Kilometers) Easy 60 miles. Only on second cycle of the pack. Took first cycle down to 25% DOD |
| Seating Capacity | 1 adult |
| Curb Weight | 670 Pounds (304 Kilograms) |
| Tires | Front and Rear Suspension, Brakes, Wheels etc are Hayabusa items adapted to the Honda |
| Conversion Time | 200 hours |
| Additional Features | Pedals are functional at all speeds but do not turn unless I turn them. Errands and exercise all at one time. |

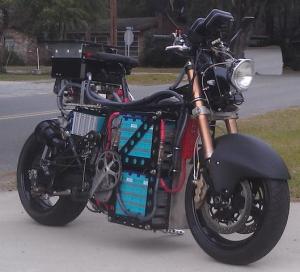

1981 Honda 500
“Pedal Electric Motor Bike”
Last Updated 11-09-2014
