Greg Fordyce's 2009 Peugeot Expert LWB

Owner	Greg Fordyce
Owner's Other EVs	1994 Volvo 440 1990 Fiat 126 1999 Daewoo Matiz
Location	Galashiels, Scotland United Kingdom ^map
Web/Email	WebPage
Vehicle	2009 Peugeot Expert LWB Originally converted to an EV by Allied Vehicles in Glasgow Scotland
Motor	Nissan EM57 Brushless DC 80Kw motor used in the AZEO Nissan Leaf. I'm using the full Leaf stack.
Drivetrain	Front wheel drive
Controller	ZombieVerter https://openinverter.org/wiki/ZombieVerter_VCU The ZombieVerter is an open source project that I'm using to drive the full Leaf stack
Batteries	96 30kWh plus 24kWh, 0.00 Volt, Lithium-Ion The plan is for a 30kWh and 24kWh Leaf pack under the van in a custom box.
System Voltage	355 Volts
Charger	Nissan OBC Part of the full Leaf stack. currently a 3.6kW charger, looking to upgrade.
Heater	Webasto diesel heater
DC/DC Converter	Nissan PDM Part of the full Leaf stack
Instrumentation	Original gauges plus ZombieVerter web interface.
Range	150 Miles (241 Kilometers) Estimated range
Watt Hours/Mile	350 Wh/Mile Estimated
Seating Capacity	3 adults
Under construction, more info to be added later

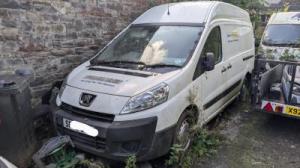

2009 Peugeot Expert LWB“Half Pint”
