| Owner | Armando |
|---|---|
| Owner's Other EVs | Pocket Bike Murray ele Pocket Bike Mini Bike Power Wheel Cart-El Montgomery Wards Tractor Barnett E-tractor 1978 Suzuki RM80 (A.K.A) BUZZ Trike Scoot |
| Location | Florida US map |
| | |

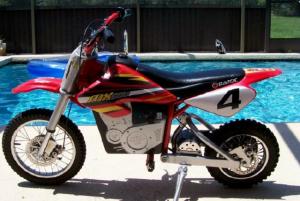

| Vehicle | Razor MX500 This is my boys razor mx500... Upgrading it for more speed and power.... |
| Motor | US Motor MY1020 Permanent Magnet DC |
| Controller | Yi Yun 48 Volt 100 Amp |
| Batteries | 4, 48.00 Volt, Lead-Acid, Gel |
| System Voltage | 48 Volts |
| Heater | Hee Hee, you’re funny! |
| Instrumentation | GPS emergencybattery cutoff switch |
| Top Speed | 27 MPH (43 KPH) Originally did 17 mph stock. Now does 27mph and decent power behind it now... Even with my big old butt on it, It does 26.4mph were before with me on it,..it barely made 16mph.... |
| Acceleration | Excellent.... Very quick |
| Range | not very good now... need to get better batteries... the ones on there are 3years old so they can't really keep up...... |
| Seating Capacity | 1 adult |
| Curb Weight | 80 Pounds (36 Kilograms) |
| Tires | 16" front 13" rear |
| Conversion Time | too amany hours.... |
| Conversion Cost | 120.00 |
| Additional Features | special thanks to chris @ tnc scooters for all his help... |
| I swapped the 500 Watt motor and put a 750 Watt motor in... Did not want to mod the motor mount so the 750 fit perfect in place of the old motor.... Swapped out the controller from 36 Volt/30 Amps to 48 Volt/100 Amp..... WebPage | |
Razor MXZ500
Last Updated 11-15-2006
