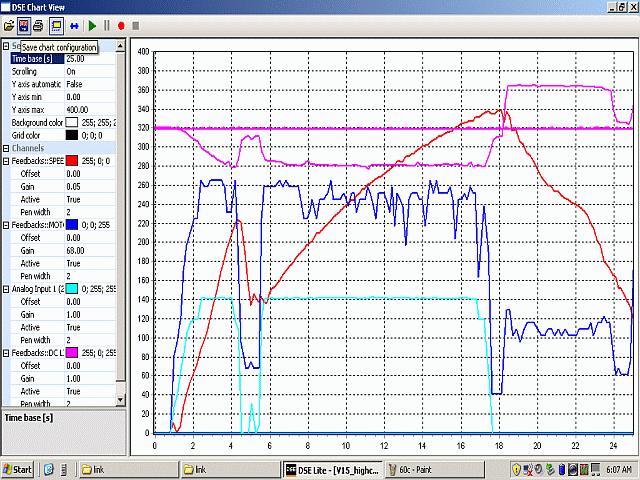

magenta - DC Bus Voltage (0-400 VDC) red - Motor RPM x 20 (0-8000 RPM) blue - Motor current (0-400 Amps/Phase) lt blue - Throttle position (0-125% torque demand) This trend chart shows 0-60 mph in 16 seconds, 6800 rpm in 2nd gear
