For layout purposes only

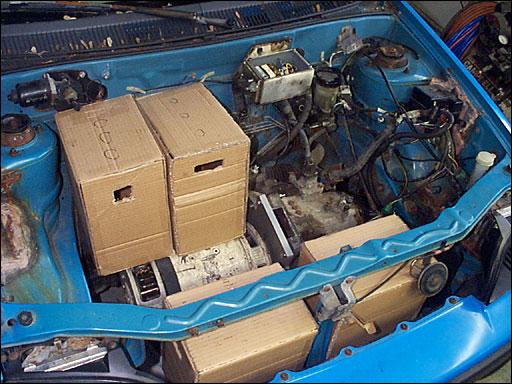

Figuring out placement. Also shows the 8 in. motor, installed. Originally we planned to use the 12 in. monster motor (hey, we're noobs - didn't know it was overkill). Turned out to be too big anyway (dia.) - it would have interfered with the r. axle.
