OwnerJuan Carlos Fernández Rodríguez
LocationPuerto de Vega, (Asturias) Spain map
Email email image
Vehicle2008

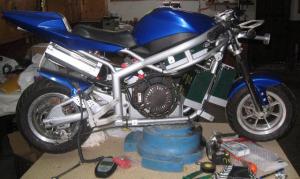

Chinese Yamaha R1 Replica Pocket bike
MotorPerm Motor PMG 132 Permanent Magnet DC
4,74 KW at 48V 110A 2300 min-1
WebPage /> motor.de/site/en/products/dc_motors.php
?linkid=p&linkid2=4
DrivetrainChain drive.
06 B-1 (DIN 8187)
21 tooth front
37 tooth rear
ControllerPenny and Giles (PG Drives )¨Sigmadrive¨PPM445TM
24-48VDC (14.5-63V Absolute)450A(1 min)
180A (1 hour rating).With regen.
WebPage /> x.html WebPage /> option=com_content&view=category&layout
=blog&id=42&Itemid=67














Batteries4 CSB EVX 12200, 12.00 Volt, Lead-Acid, AGM
12V 20Ah. 230A(5 sec) 14mOhm.














System Voltage48 Volts
ChargerDeltran Battery Tender ¨High Frequency¨ DAC
48V 10A, 5-Step AGM and Flooded -Golf
Style battery charger.
HeaterFabes y Sidrina.
Nun fai falta gasolina.
DC/DC ConverterMeanwell SD-25C-12
INPUT: DC48V(36-72V) 0.8A
OUTPUT: +12V 2.1A
InstrumentationLCD Display Sigmagauge.(battery
discharge,volts,amps,speedometer,
odometer).
Top Speed60 MPH (96 KPH)
Range10 Miles (16 Kilometers)
EV Miles
Current:350 Miles (563 Kilometers)
Seating Capacity1 Adult
TiresFront:90/65-8
Rear:130/50-8
ZHONG YA
Conversion Time6 months
Conversion Cost3000 euros....UHMMMM
Additional FeaturesHand made white led bulbs.
Very fast and great acceleration
