OwnerCor van de Water
Owner's Other EVs1994 Chevrolet S10 WaveDriver
Schwinn Sierra
Blue 2002 Toyota Prius
2004 Reva Maini
1989 Ford Ranger
1999 EVGlobal
PowerSmart ladies bike
Green 2002 Toyota Prius
2001 Toyota Prius
LocationMountain View, California United States map
Web/EmailWebPage email image

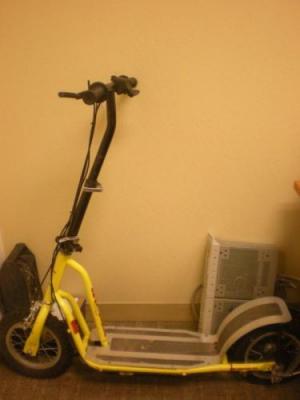

VehicleCurrie Phat Flyer
Yellow scooter, nice 12 inch wheels with air tires so it can handle a little bit of bumps and terrain. Donated by fellow EV'er because of bad rear wheel (broken spokes, dead battery)
MotorCurrie Brushless DC
Drivetrain24V 300W Currie motor like those used on Schwinn e-Bike kit
Batteries2, 12.00 Volt, Lead-Acid, Gel
10Ah, two in series for 24V 10Ah pack under the floorboard of the scooter
System Voltage24 Volts
HeaterYou can get warm by switching to Human-Hybrid mode and scooting with one foot.
DC/DC Converter
No lights except clip-on bike lights
Instrumentationnone except a blinking light on charger.
Top Speed14 MPH (22 KPH)
Range8 Miles (12 Kilometers)
Watt Hours/Mile8 Wh/Mile
Seating Capacityno seat, stand-up type. Seat is optional and not provisioned equipment.
Curb Weight58 Pounds (26 Kilograms)
Tires12" x 2"
Additional FeaturesFold-down handlebars for storage.
Direct chain drive with freewheel clutch
