Owner's Other EVs1994 ZAZ Tavrija
1992 Tula
2008 VAZ-Kalina
2013 VAZ-ELLada
LocationGubkin, Belgorod region Russian Federation map
Web/EmailWebPage email image

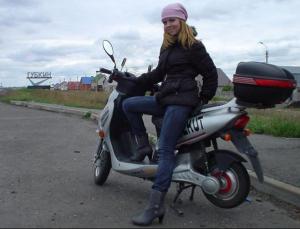

Vehicle2006 Chinese E-scooter
The Chinese base E-scooter modification
Motor 2000Wt 60V Brushless DC
old motor 800W deinstalled,and installed a new motor 2kWt continuously and 3.5kWt of peak power.
Controller EC-124110-LYEN EDITION
12 FET 4110 MOSFET Controller LYEN Edition
Batteries40 Headway 38120, 64.00 Volt, Lithium Iron Phosphate
BMS 20s, 40a cont, 80a peak current.
System Voltage64 Volts
ChargerKingpan KP6008EL
220v / 73v 8A
DC/DC Converter 48-72/12v,10a
InstrumentationTurnigy 130A Watt Meter and Power Analyzer
Top Speed70km/h (GPS)
Range70km @ 50km/h
