|Owner's Other EVs||1996 Trek 970|
2008 Supercycle Hooligan
2003 GIANT DH Comp 113km/h speed update 08-2011
2011 KMX Typhoon
|Location||Quebec, Quebec Canada map|
|Vehicle||2005 Motobike for kids |

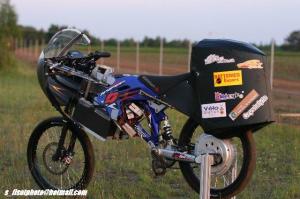

World fastest electric bicycle 2009 94.372kph with front wind of 24km/h
This electric bike is built to beat the world record of the fastest electric bicycle. I started using a kid motobike that I modified the frame to increase stability and added fairing to get more aerodynamic profile
|Motor||Crystalyte 5302 3-Phase AC|
The motor base is a 5302 hub motor that i drilled the side cover to cool it down and that i doubled every phase wires connector to icrease current capability
|Controller||Crystalyte 18 fets controller using IR4110 mosfets 15 000Watt|
The base is a stock 18 fets controller that i modified the aluminum bar to sing the heat of the fets using pure copper and i also replaced the stock 100V 1000uF capacitor for low ESR 160V 1000uF capacitors and installed larger power input wires.
105V and 172A max
|Batteries||120 A123 Systems 30s 4p, 99.00 Volt, Lithium-Ion|
The battery pack is made using recycled Dewalt battery pack. The BMS is made by Tppacks and can manage 28s. The 2s 4p missing is a booster pack.
The totaol battery power capability is 34000Watts
|System Voltage||99 Volts|
|Charger|| Meanwell RSP 1500|
This is a 48V 32A power supply converted into a charger. this power supply have a PFC of 0.99 !!!.
it is adjusted to 34A and 51.8V it draw 17Amps from the 120 Ac outlet
|Instrumentation||Cycle analyst V2.1|
|Top Speed||59 MPH (94 KPH)|
The speed was recorded using a GPS on the drag racing lane of Pont Rouge in Canada. We had a front wind of 24km/h so the expected speed no wind should be around 105-110km/h
|Acceleration||0-70km/h in 5sec|
|Range||7 Miles (11 Kilometers)|
at full speed!
|Watt Hours/Mile||120 Wh/Mile |
|Seating Capacity||1 adult|
|Curb Weight||92 Pounds (41 Kilograms)|
|Tires||120PSI slick 20" tires inflated to 118PSI|
|Conversion Time||8 months|
|Conversion Cost||2300$ + many great sponsors!|
|Additional Features||This electric bicycle is built to stay the actual world fastest electric bike! I love to test and ameliorate it!.. I had very low time to construct it cause I had to finish it before the 16 and 17 June for a TV episode that was filmed for that electric bike. otherwise I would have take all summer to finish it!|
I still have a lot of things to tune and ameliorate on it.
|Follow me on Twitter: DocbassMelancon|
You can find a lot of video on you tub e by searching with: Stephane Melancon and also Doctorbass test lab
Thanks you for watching!
We also have a very nice forum about crazy electric bike passionate!
3w.e n d l e s s - s p h e r e . c o m / f o r u m s
Special thanks to all my family and friends for encouraging me! and also special thanks to:
-Battery Expert for the connectors
-Velo Station.ca for the excellent bike frame mod
-circuits Imprimés de la Capitale
