ENERGY displayPrius PHEV 2.0solar panelsHeadway 72S2P + 72S single cell balancer
OwnerAdmir Ribic
Owner's Other EVs2010 Toyota Prius
1990 FIAT Uno
2000 Th!nk City
2000 ELCAT Cityvan 200
2008 Kina Wuxing 4-Wheeler
2010 FIAT 500
1953 Autoped NV electric
2014 Tangjunouling LJ-EV2
LocationOrebro, Orebro Sweden map
Web/EmailWebPage email image

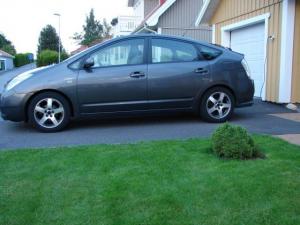

Vehicle2007 Toyota Prius
Plug-in hybrid PHEV - homemade
MotorToyota 3-Phase AC
DrivetrainToyota OEM
Batteries72 Headway 40152S - 15Ah, 3.20 Volt, Lithium Iron Phosphate
10C for 30 seconds
System Voltage230 Volts
Charger EcityPower EMC-2000/6A
DC/DC Converter Toyota OEM
InstrumentationJLD404AH display
Top Speed50 MPH (80 KPH)
EV-mode up to 80-90km/h
Hybrid all the time.
Range40 Miles (64 Kilometers)
+40miles range with 80% battery deplated
Watt Hours/Mile180 Wh/Mile
EV Miles
Current:1,000 Miles (1,609 Kilometers)
Seating Capacity1+4
Curb Weight3,200 Pounds (1,454 Kilograms)
Conversion Time1 month
Conversion Cost5.500 EUR + car
Additional FeaturesFast charger sitting on the garage wall with separate plug
that allows 80% charge in 1hour, from solarpanels of course!

Cabin heater from wall outlet remote controlled for winter
defrosting comfort.

Winter tires with studs for Swedish winter driving :-)
Was once 70pcs of A123 20Ah pouch cells, with 5 small
chargers and EV display from MiniBMS. That pack is sold to
prius 04 owner, he likes it a lot!

### the car is SOLD ###
